From RM8650 onwards


R32 Inverter Single Split

R32

4.0hp

Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.

The setpoint auto rest enables new set temperature returns to the previous preset value after a preset duration of time, even if the set temperature is changed. The period is selectable from 30, 60, 90, or 120 min. The setpoint range set saves energy by limiting the minimum and maximum set temperature and avoids excessive heating or cooling.

Allows better and simpler cleaning, prevents condensation and accumulation of dirt does not cling to non-flocking flaps.

Designed for durability and component quality, the units come with 5 years warranty for compressor and 3 years warranty for general parts.

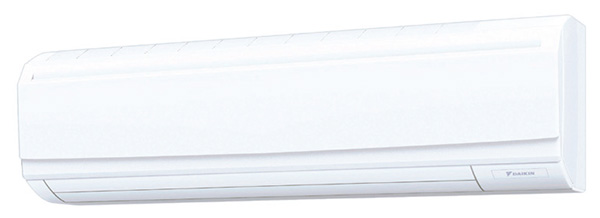

| FAA-B Series | |||
|---|---|---|---|
| Indoor | FAA100BVMA | ||
| Outdoor | RZF100CVM | RZF100CYM | |
| Specifications / Model name | |||
| Type | Inverter | ||
| Horsepower | (hp) | 4 | 4 |
| Refrigerant | R32 | ||
| Rated Cooling Capacity (Min-Max) | (Btu/h) | 34,100 (17,100-38,200) | |
| Rated Power Consumption | (W) | 3,600 | |
| CSPF | (Wh/Wh) | 4.05 | |
| Air Flow Rate | (CFM) | 918 | |
| Power Source | (V/Ph/Hz) | 220-240/1/50 | 380-415/3/50 |
| Sound Pressure Level - Indoor (H/ M/ L) | dBA | 49 /45 /41 | |
| Dimension - Indoor (H x W x D) | mm | 340 X 1,200 X 240 | |
| Dimension - Outdoor (H x W x D) | mm | 695 X 930 X 350 | |
| Unit weight - Indoor | (kg) | 17 | |
| Unit weight - Outdoor | (kg) | 48 | |
| Copper Pipe Size - Liquid | (mm) | 9.52 | |
| Copper Pipe Size - Gas | (mm) | 15.90 | |
| Controller | Wired/ Wireless | ||
| Retail Sales Price | RM8,650.00 | ||
