From RM5630 onwards
The 360° Airflow distribution creates uniform comfort throughout the space and room remains comfortable even when the set temperature is raised 1℃.
R32 Inverter Single Split
2.0 - 6.0hp
R32
Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution. Easy setting is possible with a wired remote controller.
Circulation airflow cools the entire room to deliver comfort that never feels cold. It is applicable with wired controller.
Dual sensors and individual airflow direction control automatically provide optimal control of airflow. It is applicable when sensing panel BYCQ125EEF is installed and wired remote controller BRC1E63 is used.
A built-in antibacterial treatment that uses silver ion in the drain pan prevents the growth of slime, bacteria, and mould that cause odours and clogging. (The lifespan of a silver ion cartridge depends on the usage environment, but should be changed once every two to three years.)
Flaps can be detached without use of tools. Condensation does not easily form and dirt does not cling to non-flocking flaps. They are easy to clean.

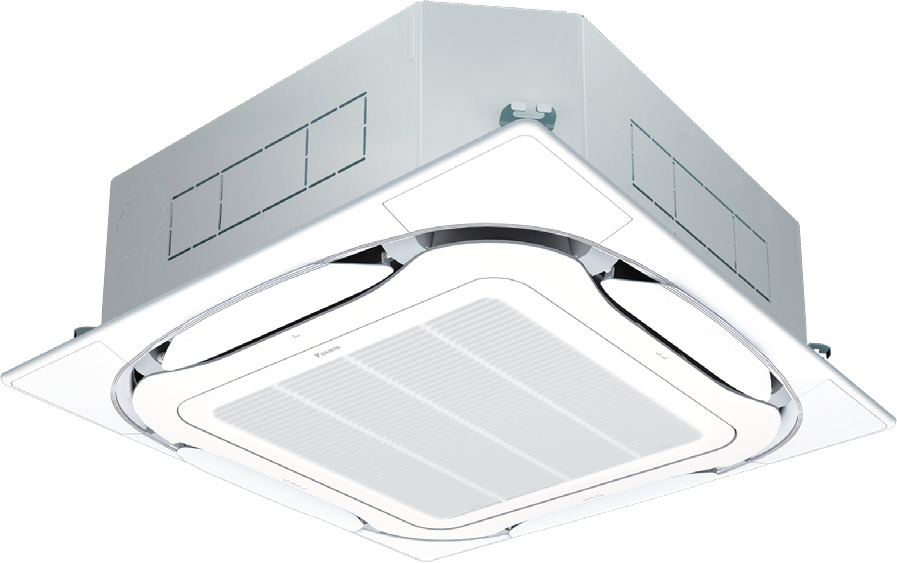

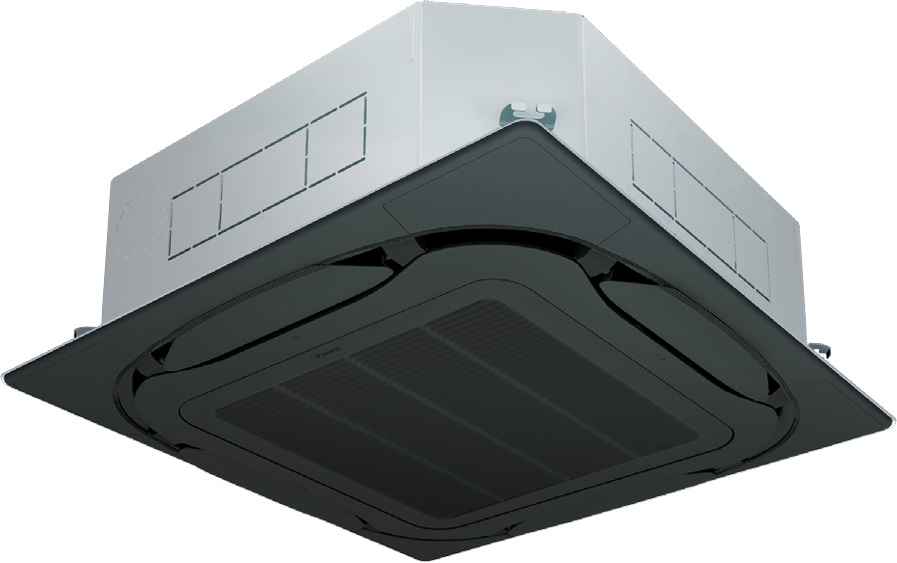

| FCF-C Series | |||||||
|---|---|---|---|---|---|---|---|
| Indoor | FCF50CVM | FCF60CVM | FCF71CVM | FCF100CVM | FCF125CVM | FCF140CVM | |

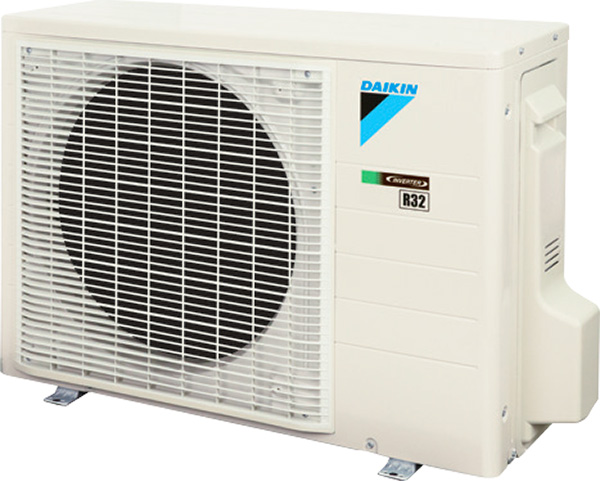

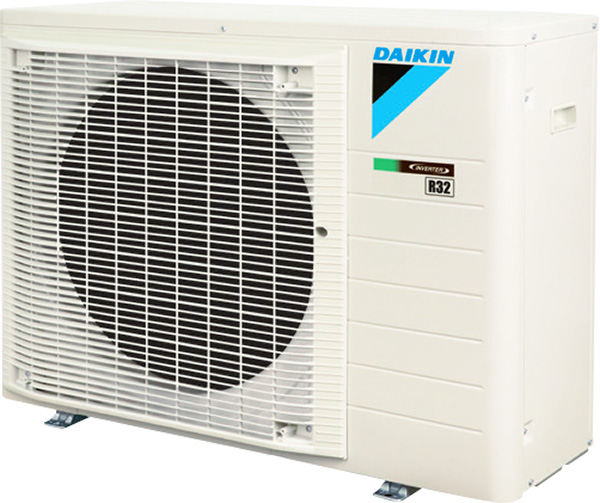

| Outdoor | RZF50CVM | RZF60CVM | RZF71CVM | RZF100CVM | RZF125CVM | RZF140CVM | |
| Specifications / Model name | |||||||
| Type | Inverter | ||||||
| Refrigerant | R32 | ||||||
| Rated Cooling Capacity (Min-Max) | (Btu/h) | 17,100 (10,900-19,100) | 20,500 (10,900-20,500) | 24,200 (10,900-27,300) | 34,100 (17,100-38,200) | 42,700 (19,500-47,800) | 47,800 (21,200-52,900) |
| Rated Power Consumption | (W) | 1,140 | 1,530 | 1,930 | 2,970 | 4,180 | 5,470 |
| COP | (W/W) | 4.39 | 3.92 | 3.68 | 3.37 | 2.99 | 2.56 |
| CSPF | (Wh/Wh) | 6.60 | 6.31 | 6.17 | 5.50 | 5.15 | 5.00 |
| Air Flow Rate (H/HM/M/ML/L) | CFM | 812/ 741/ 653/ 565/ 477 | 1,218/ 1,094/ 971/ 847/ 706 | 1,288/ 1,165/ 1,024/ 883/ 741 | |||
| Power Source | (V/Ph/Hz) | 220-240/ 1/ 50 | |||||
| Sound Pressure Level - Indoor (H/HM/M/ML/L) | (dBA) | 37.0/ 34.5/ 32.0/ 29.5/ 27.5 | 45.0/ 41.5/ 38.0/ 35.0/ 32.5 | 46.0/ 43.0/ 40.0/ 36.0/ 32.5 | |||
| Dimension - Indoor (H x W x D) | mm | 256 x 840 x 840 | 298 x 840 x 840 | ||||
| Dimension - Outdoor (H x W x D) | mm | 595 x 845 x 300 | 695 x 930 x 350 | 990 x 940 x 320 | |||
| Unit weight - Indoor | (kg) | 22 | 24 | ||||
| Unit weight - Outdoor | (kg) | 41 | 48 | 64 | |||
| Copper Pipe Size - Liquid | (mm) | 9.52 | |||||
| Copper Pipe Size - Gas | (mm) | 15.88 | |||||
| Controller | Wired/ Wireless | ||||||
| Retail Sales Price | RM5,630.00 | RM5,880.00 | RM6,200.00 | RM8,530.00 | RM8,820.00 | RM9,810.00 | |
