VRV AHU

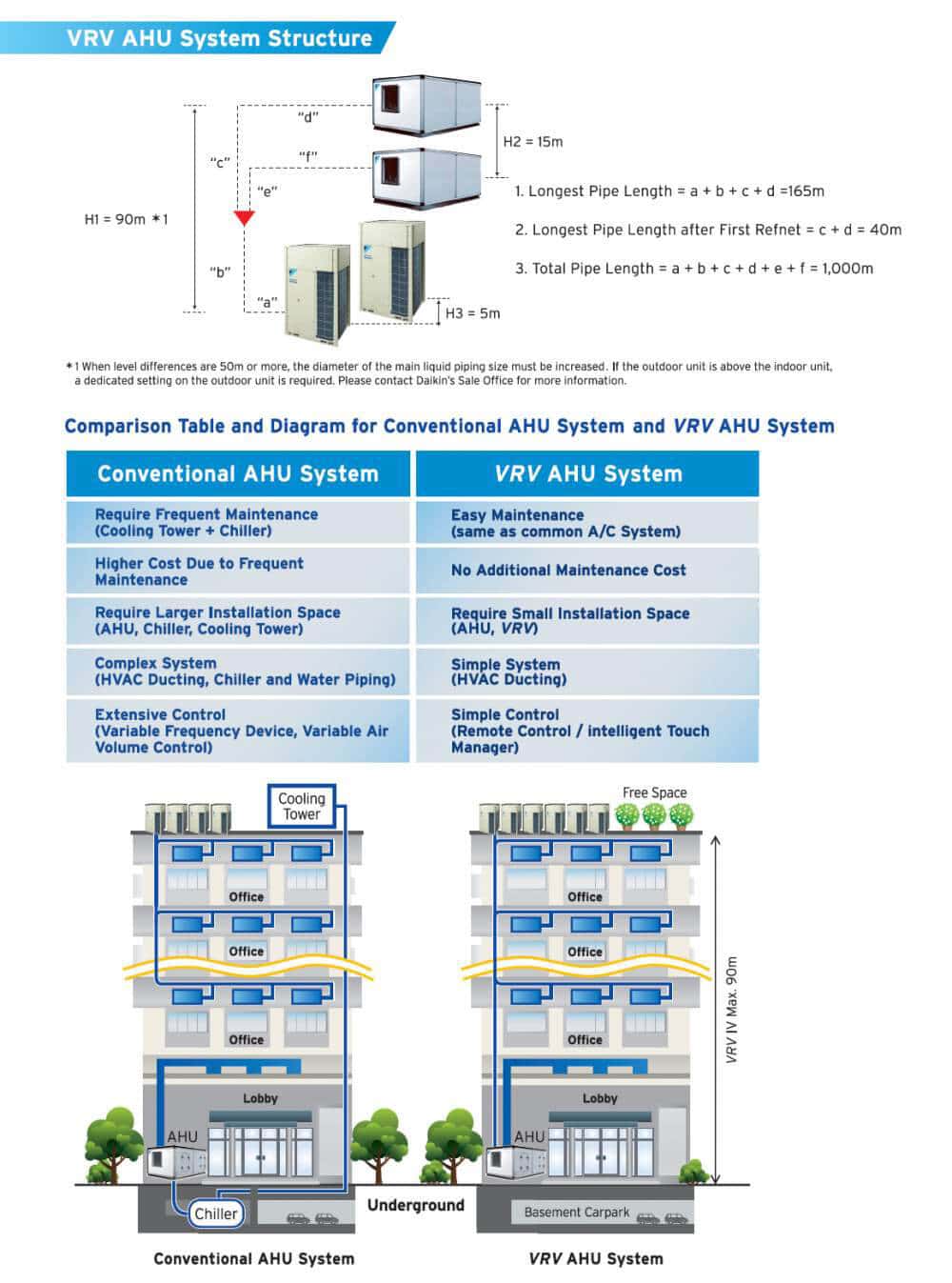

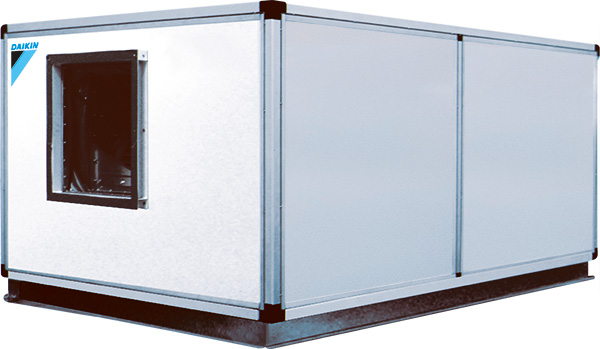

Daikin releases 2 series of VRV AHU unit namely, standard series model CBVJ/DBVJ/DBBVJ/EBBVJ and outdoor air series model CBLJ/DBLJ/DBBLJ/EBBLJ. It’s is a DX AHU system that is specially designed to work with the VRV outdoor unit.

This new model release is an inlet temperature control type AHU. This enabled the users to reduce maintenance costs and enjoy more space savings.

Daikin VRV AHU improve the indoor air quality caused by haze, pollutants,etc with options of coarse,fine filter & HEPA filter. This is the only total AHU solutions provided and manufactured completely by Daikin.

Benefits of using VRV AHU

Quality Assured

VRV AHU are manufactured by Daikin factory

Ease of Installation

No additional system such as cooling tower,chiller,and long water piping system are required.This also reduces the total system maintenace costs
Flexible design of the ducting system.
Cover large area with different ducting congfiguration.
VRV AHU can provide ESP up to 450Pa*

Total Solution Concept

Integration an AHU into the total building climate system enable both design and installation procedures to be based on a single common technology.
This simplifies project follow-up, installation, commissioning and maintenance since only party is involed.

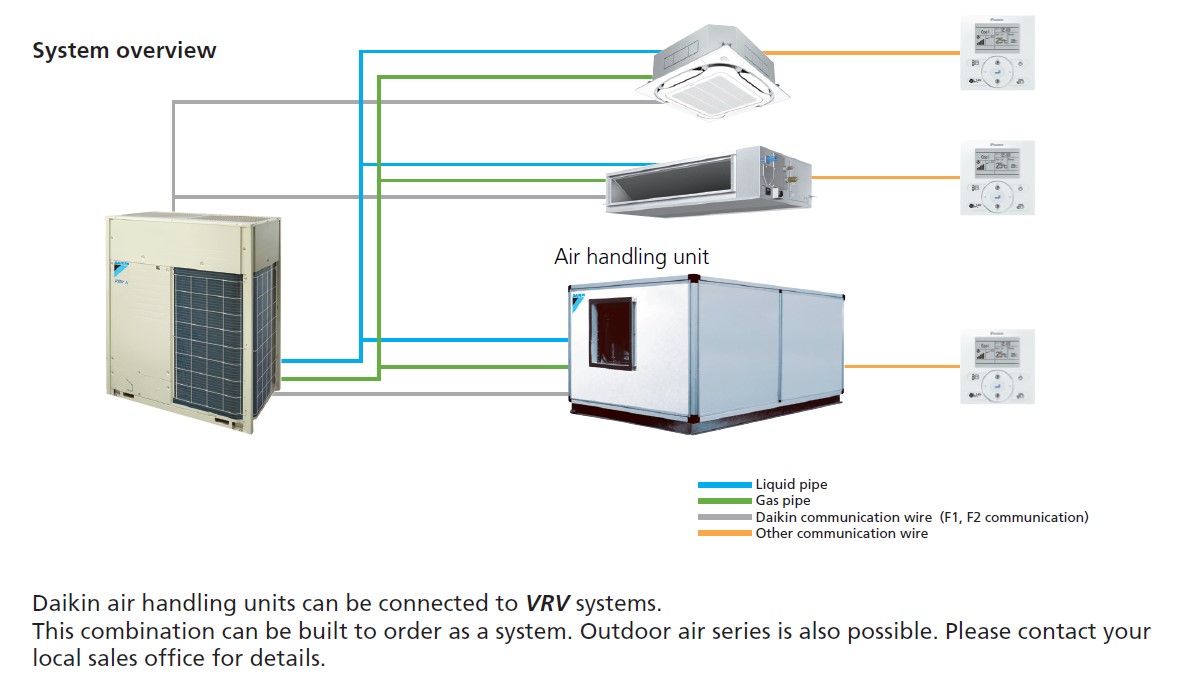

VRV AHU system can be coupled and mixed with other type indoor unit to work together concurrently.

Tech specs

Specifications

Standard Series AHUR-CBVJ/ DBVJ/ DBBVJ/ EBBVJ
25mm Thickness Double Skinned Panel			50mm Thickness Double Skinned Panel			50mm Thickness Double Skinned Panel (Thermal Break)			60mm Thickness Double Skinned Panel (Thermal Break)
Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)
AHUR06CBVJ	15.4	1,100 X 1,500 X 880	AHUR06DBVJ	15.4	1,150 X 1,550 X 930	AHUR06DBBVJ	15.4	1,150 X 1,550 X 930	AHUR06EBBVJ	15.4	1,160 x 1,520 x 940
AHUR08CBVJ	22.1	1,400 X 1,500 X 880	AHUR08DBVJ	22.1	1,450 X 1,550 X 930	AHUR08DBBVJ	22.1	1,450 X 1,550 X 930	AHUR08EBBVJ	22.1	1,460 x 1,520 x 940
AHUR10CBVJ	26.3	1,400 X 1,500 X 880	AHUR10DBVJ	26.3	1,450 X 1,550 X 930	AHUR10DBBVJ	26.3	1,450 X 1,550 X 930	AHUR10EBBVJ	26.3	1,460 x 1,520 x 940
AHUR16CBVJ	43.9	1,400 X 1,600 X 1,180	AHUR16DBVJ	43.9	1,450 X 1,650 X 1230	AHUR16DBBVJ	43.9	1,450 X 1,650 X 1,230	AHUR16EBBVJ	43.9	1,460 x 1,620 x 1,240
AHUR20CBVJ	55.8	1,400 X 1,600 X 1,480	AHUR20DBVJ	55.8	1,450 X 1,650 X 1,530	AHUR20DBBVJ	55.8	1,450 X 1,650 X 1,530	AHUR20EBBVJ	55.8	1,460 x 1,620 x 1,540
AHUR32CBVJ	89.3	1,900 X 1,900 X 1,480	AHUR32DBVJ	89.3	1,950 X 1,950 X 1,530	AHUR32DBBVJ	89.3	1,950 X 1,950 X 1,530	AHUR32EBBVJ	89.3	1,960 x 1,920 x 1,540
AHUR40CBVJ	103.6	1,900 X 1,900 X 1,780	AHUR40DBVJ	103.6	1,950 X 2,050 X 1,830	AHUR40DBBVJ	103.6	1,950 X 1,950 X 1,830	AHUR40EBBVJ	103.6	1,960 x 1,920 x 1,840
AHUR48CBVJ	131.7	2,300 X 2,000 X 1,780	AHUR48DBVJ	131.7	2,350 X 2,050 X 1,830	AHUR48DBBVJ	131.7	2,350 X 2,050 X 1,830	AHUR48EBBVJ	131.7	2,360 x 2,020 x 1,840
AHUR60CBVJ	167.6	2,500 X 2,000 X 1,980	AHUR60DBVJ	167.6	2,250 X 2,050 X 2,030	AHUR60DBBVJ	167.6	2,550 X 2,050 X 2,030	AHUR60EBBVJ	167.6	2,560 x 2,020 x 2,040
AHUR80CBVJ	220.5	3,400 X 1,900 X 2,000	AHUR80DBVJ	220.5	3,400 X 1,900 X 2,000	AHUR80DBBVJ	220.5	3,450 X 1,950 X 2,050	AHUR80EBBVJ	220.5	3,460 x 1,920 x 2,060
AHUR100CBVJ	274.1	4,200 X 2,000 X 2,000	AHUR100DBVJ	274.1	4,200 X 2,000 X 2,000	AHUR100DBBVJ	274.1	4,250 X 2,050 X 2,050	AHUR100EBBVJ	274.1	4,260 x 2,020x 2,060
AHUR120CBVJ	329.2	4,200 X 2,000 X 2,300	AHUR120DBVJ	329.2	4,200 X 2,000 X 2,300	AHUR120DBBVJ	329.2	4,250 X 2,050 X 2,050	AHUR120EBBVJ	329.2	4,260 x 2,020 x2,360

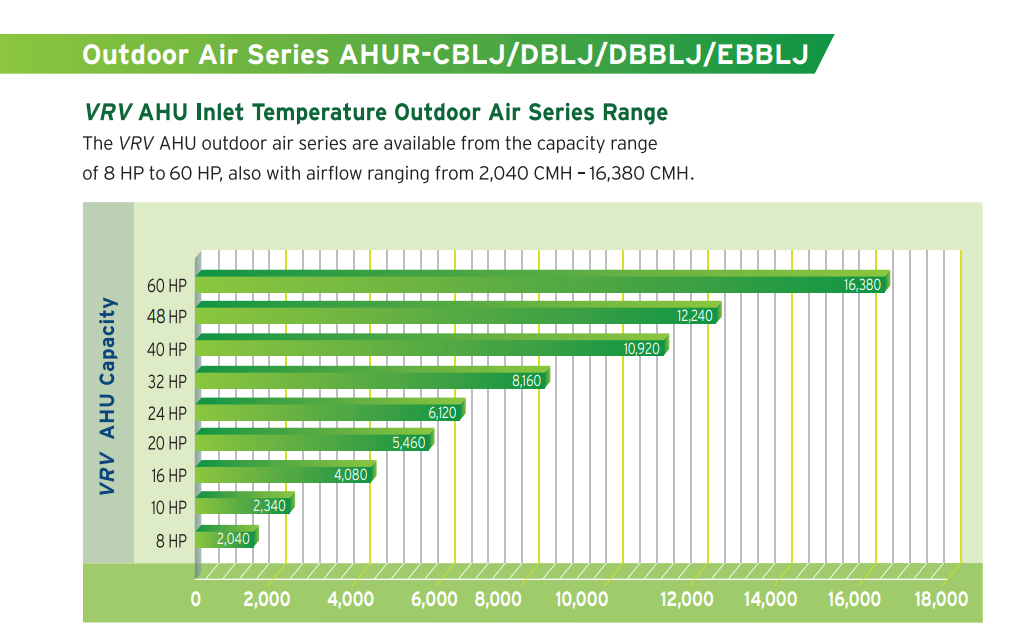

Outdoor Air Series AHUR-CBLJ/ DBLJ/ DBBLJ/ EBBLJ
25mm Thickness Double Skinned Panel			50mm Thickness Double Skinned Panel			50mm Thickness Double Skinned Panel (Thermal Break)			60mm Thickness Double Skinned Panel (Thermal Break)
Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)	Model	Capacity (KW)	Dimension W x D x H (mm)
AHUR08CBLJ	25.7	1,100 X 2,000 X 880	AHUR08DBLJ	25.7	1,150 X 2,050 X 930	AHUR08DBBLJ	25.7	1,150 X 2,050 X 930	AHUR08EBBLJ	25.7	1,160 x 2,020 x 940
AHUR10CBLJ	29.5	1,400 X 2,000 X 880	AHUR10DBLJ	29.5	1,450 X 2,050 X 930	AHUR10DBBLJ	29.5	1,450 X 2,050 X 930	AHUR10EBBLJ	29.5	1,460 x 2,020 x 940
AHUR16CBLJ	51	1,400 X 1,900 X 1,180	AHUR16DBLJ	51	1,450 X 1,950 X 1,230	AHUR16DBBLJ	51	1,450 X 1,950 X 1,230	AHUR16EBBLJ	51	1,460 x 1,920 x 1,240
AHUR20CBLJ	67.7	1,700 X 1,900 X 1,180	AHUR20DBLJ	67.7	1,750 X 1,950 X 1,230	AHUR20DBBLJ	67.7	1,750 X 1,950 X 1,230	AHUR20EBBLJ	67.7	1,760 x 1,920 x 1,240
AHUR24CBLJ	78	1,700 X 2,800 X 1,180	AHUR24DBLJ	78	1,750 X 2,850 X 1,230	AHUR24DBBLJ	78	1,750 X 2,850 X 1,230	AHUR24EBBLJ	78	1,760 x 2,820 x 1,240
AHUR32CBLJ	103.7	1,700 X 2,300 X 1,480	AHUR32DBLJ	103.7	1,750 X 2,350 X 1,530	AHUR32DBBLJ	103.7	1,750 X 2,350 X 1,530	AHUR32EBBLJ	103.7	1,760 x 2,320 x 1,540
AHUR40CBLJ	139.2	1,900 X 1,900 X 1,780	AHUR40DBLJ	139.2	1,950 X 1,950 X 1,830	AHUR40DBBLJ	139.2	1,950 X 1,950 X 1,830	AHUR40EBBLJ	139.2	1,960 x 1,920 x 1,840
AHUR48CBLJ	155.9	1,900 X 2,400 X 1,780	AHUR48DBLJ	155.9	1,950 X 2,450 X 1,830	AHUR48DBBLJ	155.9	1,950 X 2,450 X 1,830	AHUR48EBBLJ	155.9	1,960 x 2,420 x 1,840
AHUR60CBLJ	202.6	2,300 X 2,000 X 1,980	AHUR60DBLJ	202.6	2,350 X 2,050 X 2,030	AHUR60DBBLJ	202.6	2,350 X 2,050 X 2,030	AHUR60EBBLJ	202.6	2,360 x 2,020 x 2,040
