From RM1,710 onwards
Compatible with Go Daikin. Download App from

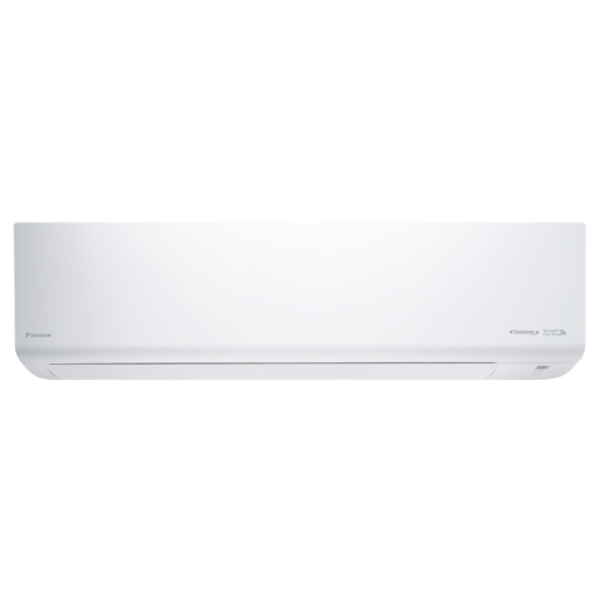

FTKB Series delivers efficient, reliable cooling with 4-Star energy savings, enhanced protection features, and Smart Control convenience.
R32 Inverter Single Split
R32
1.0 - 3.0hp
This mode limits the maximum power consumption. It improves operating efficiency while fulfilling basic human comfort needs.
This filter is treated with a positively charged silver ion, which efficiently draws viruses onto its surface and decomposes up to 99.9% in 2 hours. On top of that, this filter can deactivate bacteria and inhibit fungal growth on its surface to improve the quality of indoor air for a healthier lifestyle. The filter delivers consistent performance for around a year if filter is cleaned once every 2 weeks.

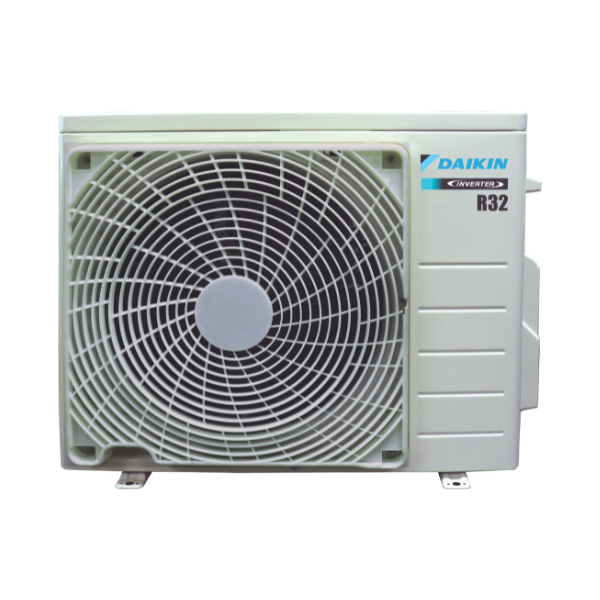

The Outdoor units come with anti-corrosion properties with it’s Blue fin heat exchanger and new corrosion resistant aluminium alloy microchannel heat exchanger.
Remark: Blue fins heat exchanger for RKB25-71 and microchannel heat exchanger for RKB75.
The drain pan can be removed easily without any assembly, made it easy for maintenance. It reduces cleaning time dramatically and ensures a perfect finish.
This built-in network adaptor (AWM61A01) and the app turn a smartphone into a remote controller that can be used inside or outside the home. Together, they help to not only save energy and maintain comfort but also eliminate any worries of forgetting to turn off your air conditioner! (Certain app functions are optional.)
Designed for durability and component quality, the units come with 5 years warranty for compressor and 3 years warranty for general parts.
| FTKB-A Series | |||
|---|---|---|---|
| Indoor | FTKB25AV1M | ||
| Outdoor | RKB25AV1M | ||
| Capacity | Rated (Min - Max) | kW | 2.64 (1.03 - 2.70) |
| Btu/h | 9,000 (3,500 - 9,200) | ||
| Power supply | 1 phase, 220-240 V, 50 Hz (Power to indoor) | ||
| Running current | Rated (Min - Max) | A | 3.96 (2.08 – 4.28) |
| Power consumption | Rated (Min - Max) | W | 890 (255 - 960) |
| CSPF | Wh/Wh | 4.9 | |
| Energy rating | 4 star | ||
| Heat insulation | Both liquid and gas piping | ||
| Indoor unit | |||
| Airflow rate | H | cfm | 340 |
| Sound pressure levels | H / M / L / Q | dB(A) | 39/33/26/21 |
| Dimensions | H x W x D | Mm | 280 x 730 x 213 |
| Unit weight | Kg | 8 | |
| Outdoor unit | |||
| Refrigerant | Type | R32 | |
| Sound pressure levels | H | dB(A) | 48 |
| Dimensions | H x W x D | mm | 460 x 650 x 240 |
| Unit weight | kg | 16.5 | |
| Piping connection | Liquid | mm | ø6.35 |
| Gas | mm | ø9.52 | |
| Chargeless pipe length | m | 7.5 | |
| Maximum pipe length | m | 20 | |
| Maximum height difference | m | 15 | |
| Heat Exchanger | Type | Hydrophilic Blue Fin | |
| FTKB-A Series | |||
|---|---|---|---|
| Indoor | FTKB35AV1M | ||
| Outdoor | RKB35AV1M | ||
| Capacity | Rated (Min - Max) | kW | 3.60 (1.20 - 3.75) |
| Btu/h | 12,300 (4,100 - 12,800) | ||
| Power supply | 1 phase, 220-240 V, 50 Hz (Power to indoor) | ||
| Running current | Rated (Min - Max) | A | 5.50 (2.37 – 5.88) |
| Power consumption | Rated (Min - Max) | W | 1160 (250 – 1,240) |
| CSPF | Wh/Wh | 4.9 | |
| Energy rating | 4 star | ||
| Heat insulation | Both liquid and gas piping | ||
| Indoor unit | |||
| Airflow rate | H | cfm | 400 |
| Sound pressure levels | H / M / L / Q | dB(A) | 40/35/28/23 |
| Dimensions | H x W x D | Mm | 288 x 770 x 234 |
| Unit weight | Kg | 9 | |
| Outdoor unit | |||
| Refrigerant | Type | R32 | |
| Sound pressure levels | H | dB(A) | 49 |
| Dimensions | H x W x D | mm | 550 x 675 x 284 |
| Unit weight | kg | 21 | |
| Piping connection | Liquid | mm | ø6.35 |
| Gas | mm | ø9.52 | |
| Chargeless pipe length | m | 7.5 | |
| Maximum pipe length | m | 20 | |
| Maximum height difference | m | 15 | |
| Heat Exchanger | Type | Hydrophilic Blue Fin | |
| FTKB-A Series | |||
|---|---|---|---|
| Indoor | FTKB50AV1M | ||
| Outdoor | RKB50AV1M | ||
| Capacity | Rated (Min - Max) | kW | 5.28 (1.64 - 5.42) |
| Btu/h | 18,000 (5,600 - 18,500) | ||
| Power supply | 1 phase, 220-240 V, 50 Hz (Power to indoor) | ||
| Running current | Rated (Min - Max) | A | 7.29 (2.41 - 7.52) |
| Power consumption | Rated (Min - Max) | W | 1,650 (420 - 1,700) |
| CSPF | Wh/Wh | 4.57 | |
| Energy rating | 4 star | ||
| Heat insulation | Both liquid and gas piping | ||
| Indoor unit | |||
| Airflow rate | H | cfm | 430 |
| Sound pressure levels | H / M / L / Q | dB(A) | 42 / 39 / 32 / 29 |
| Dimensions | H x W x D | Mm | 288 x 770 x 234 |
| Unit weight | Kg | 9.5 | |
| Outdoor unit | |||
| Refrigerant | Type | R32 | |
| Sound pressure levels | H | dB(A) | 52 |
| Dimensions | H x W x D | mm | 615 x 845 x 300 |
| Unit weight | kg | 35 | |
| Piping connection | Liquid | mm | ø6.35 |
| Gas | mm | ø12.70 | |
| Chargeless pipe length | m | 7.5 | |
| Maximum pipe length | m | 30 | |
| Maximum height difference | m | 20 | |
| Heat Exchanger | Type | Hydrophilic Blue Fin | |
| FTKB-A Series | |||
|---|---|---|---|
| Indoor | FTKB71AV1M | ||
| Outdoor | RKB71AV1M | ||
| Capacity | Rated (Min - Max) | kW | 7.03 (1.93 - 7.18) |
| Btu/h | 24,000 (6,600 - 24,500) | ||
| Power supply | 1 phase, 220-240 V, 50 Hz (Power to indoor) | ||
| Running current | Rated (Min - Max) | A | 9.49 (2.40 - 10.1) |
| Power consumption | Rated (Min - Max) | W | 2,160 (380 - 2,300) |
| CSPF | Wh/Wh | 4.5 | |
| Energy rating | 4 star | ||
| Heat insulation | Both liquid and gas piping | ||
| Indoor unit | |||
| Airflow rate | H | cfm | 640 |
| Sound pressure levels | H / M / L / Q | dB(A) | 43 / 41 / 36 / 30 |
| Dimensions | H x W x D | Mm | 297 x 990 x 273 |
| Unit weight | Kg | 13 | |
| Outdoor unit | |||
| Refrigerant | Type | R32 | |
| Sound pressure levels | H | dB(A) | 52 |
| Dimensions | H x W x D | mm | 615 x 845 x 300 |
| Unit weight | kg | 37 | |
| Piping connection | Liquid | mm | ø6.35 |
| Gas | mm | ø12.70 | |
| Chargeless pipe length | m | 7.5 | |
| Maximum pipe length | m | 30 | |
| Maximum height difference | m | 20 | |
| Heat Exchanger | Type | Hydrophilic Blue Fin | |
| FTKB-A Series | |||
|---|---|---|---|
| Indoor | FTKB75AV1M | ||
| Outdoor | RKB75AV1M | ||
| Capacity | Rated (Min - Max) | kW | 7.50 (2.32-8.50) |
| Btu/h | 25,600 (7,900 – 29,000) | ||
| Power supply | 1 phase, 220-240 V, 50 Hz (Power to indoor) | ||
| Running current | Rated (Min - Max) | A | 9.71 (2.56 – 11.4) |
| Power consumption | Rated (Min - Max) | W | 2,180 (520 - 2,580) |
| CSPF | Wh/Wh | 5.6 | |
| Heat insulation | Both liquid and gas piping | ||
| Indoor unit | |||
| Airflow rate | H | cfm | 700 |
| Sound pressure levels | H / M / L / Q | dB(A) | 44 / 41 / 36 / 30 |
| Dimensions | H x W x D | Mm | 297 x 990 x 273 |
| Unit weight | Kg | 13 | |
| Outdoor unit | |||
| Refrigerant | Type | R32 | |
| Sound pressure levels | H | dB(A) | 53 |
| Dimensions | H x W x D | mm | 695 x 930 x 350 |
| Unit weight | kg | 40 | |
| Piping connection | Liquid | mm | ø9.52 |
| Gas | mm | ø15.90 | |
| Chargeless pipe length | m | 7.5 | |
| Maximum pipe length | m | 35 | |
| Maximum height difference | m | 20 | |
| Heat Exchanger | Type | Microchannel | |
